Carbide - 3 Flute - Square - 30° Helix

General Purpose End Mills

Milling | Carbide

Ground from solid carbide in the USA, this Titan USA offering of General Purpose End Mills is offered with 3 flutes, a square profile, and a 30° helix, and is available with either AlTiN or TiCN coating.

Offered in stub, regular, long, and extra long length styles
3 flutes
TiCN coating adds enhanced performance when AlTiN cannot be used
AlTiN coating offers increased wear and heat resistance
Solid carbide
Precision Manufactured in the USA

PRODUCT TABLE

Reviews

Advanced Search

Cutter Diameter

Shank Diameter

Length of Cut

Overall Length

TOOL #

PRICE

Show entries

Search:

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.001")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.001")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart
1/64	1/8	.023	1-1/2	TC10401	$16.20	TC91101	$19.75	TC11401	$20.60
1/64	1/8	1/32	1-1/2	TC10801	$17.10	TC90801	$20.65	TC99801	$21.50
1/32	1/8	1/16	1-1/2	TC10402	$9.95	TC91102	$13.50	TC11402	$13.51
1/32	1/8	1/8	1-1/2	TC10802	$11.40	TC90802	$14.95	TC99802	$15.80
3/64	1/8	3/32	1-1/2	TC10403	$9.95	TC91103	$13.50	TC11403	$14.35
3/64	1/8	1/8	1-1/2	TC10803	$9.75	TC90803	$13.30	TC99803	$14.15
1/16	1/8	1/8	1-1/2	TC10404	$7.55	TC91104	$11.10	TC11404	$10.11
1/16	1/8	1/4	1-1/2	TC10804	$9.80	TC90804	$11.61	TC99804	$11.61
5/64	1/8	1/8	1-1/2	TC10405	$12.70	TC91105	$16.25	TC11405	$17.10
5/64	1/8	1/4	1-1/2	TC10805	$10.10	TC90805	$13.65	TC99805	$14.50
3/32	1/8	3/16	1-1/2	TC10406	$7.55	TC91106	$11.10	TC11406	$11.95
3/32	1/8	3/8	1-1/2	TC10806	$8.95	TC90806	$12.50	TC99806	$11.61
7/64	1/8	3/8	1-1/2	TC10807	$9.30	TC90807	$12.85	TC99807	$13.70

Showing 1 to 2 of 13 entries

Previous1Next

Show entries

Search:

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.002")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.002")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart
1/8	1/8	1/4	1-1/2	TC10408	$7.25	TC91108	$9.71	TC11408	$9.71
1/8	1/8	1/2	1-1/2	TC10808	$8.45	TC90808	$10.81	TC99808	$10.81
1/8	1/8	3/4	2-1/4	TC15308	$13.75	TC95308	$17.50	TC15408	$18.45
1/8	1/8	1	3	TC17308	$15.40	TC97408	$19.15	TC17408	$20.10
9/64	3/16	9/16	2	TC10809	$12.35	TC90809	$16.30	TC99809	$17.30
5/32	3/16	5/16	2	TC10410	$11.85	TC91110	$15.80	TC11410	$15.21
5/32	3/16	9/16	2	TC10810	$12.60	TC90810	$15.01	TC99810	$15.01
11/64	3/16	5/8	2	TC10811	$11.95	TC90811	$15.90	TC99811	$16.90
3/16	3/16	3/8	2	TC10412	$11.15	TC91112	$15.10	TC11412	$14.41
3/16	3/16	5/8	2	TC10812	$11.65	TC90812	$15.60	TC99812	$15.01
3/16	3/16	3/4	2-1/2	TC15312	$17.30	TC95312	$21.55	TC15412	$21.51
3/16	3/16	1-1/8	3	TC17312	$16.75	TC97412	$21.00	TC17412	$22.05
13/64	1/4	5/8	2-1/2	TC10813	$16.95	TC90813	$22.00	TC99813	$23.30
7/32	1/4	7/16	2	TC10414	$15.00	TC91114	$19.75	TC11414	$20.95
7/32	1/4	5/8	2-1/2	TC10814	$17.25	TC90814	$22.30	TC99814	$23.60
15/64	1/4	3/4	2-1/2	TC10815	$19.55	TC90815	$24.60	TC99815	$25.90
1/4	1/4	1/2	2	TC10416	$13.15	TC91116	$16.91	TC11416	$16.91
1/4	1/4	3/4	2-1/2	TC10816	$14.25	TC90816	$19.30	TC99816	$20.60

Showing 1 to 2 of 55 entries

Previous1 2 3 4Next

Show entries

Search:

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.003")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.003")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart
9/16	9/16	1-1/4	3-1/2	TC10836	$72.55	TC90836	$84.80	TC99836	$87.80
5/8	5/8	3/4	3	TC10440	$72.15	TC91140	$83.55	TC11440	$86.45
5/8	5/8	1-1/4	3-1/2	TC10840	$73.80	TC90840	$86.05	TC99840	$89.05
5/8	5/8	2-1/4	5	TC15340	$113.25	TC95340	$126.40	TC15440	$129.70
5/8	5/8	3	6	TC17340	$122.20	TC97440	$136.45	TC17440	$139.95
3/4	3/4	1	3	TC10448	$100.60	TC91148	$114.15	TC11448	$117.60
3/4	3/4	1-1/2	4	TC10848	$103.10	TC90848	$117.65	TC99848	$121.30
3/4	3/4	2-1/4	5	TC15348	$156.40	TC95348	$172.05	TC15448	$175.95
3/4	3/4	3	6	TC17348	$182.45	TC97448	$199.40	TC17448	$203.60
3/4	3/4	4	7	TC17349	$313.20	TC97449	$331.60	TC17449	$336.20
7/8	7/8	1-1/2	4	TC10856	$189.55	TC90856	$207.10	TC99856	$211.50
7/8	7/8	2-1/4	5	TC15356	$296.45	TC95356	$315.35	TC15456	$320.10
7/8	7/8	3	6	TC17356	$324.90	TC97456	$345.35	TC17456	$350.50
1	1	1-1/4	3-1/2	TC10464	$166.45	TC91164	$187.50	TC11464	$192.75
1	1	1-1/2	4	TC10864	$173.60	TC90864	$194.65	TC99864	$199.90
1	1	2-1/4	5	TC15364	$214.20	TC95364	$236.85	TC15464	$242.55
1	1	3	6	TC17364	$308.30	TC97464	$332.85	TC17464	$338.95
1	1	4	7	TC17365	$404.15	TC97465	$430.75	TC17465	$437.40

Showing 1 to 2 of 18 entries

Previous1Next

Reviews

Write A Review

Overall Rating^*

Rating^*

Review Title

Review

Posting As

Thank you for your review. It has been submitted to the website administrator for approval

Please select a rating.

Write A Review

Thank you for your review. It has been submitted to the website administrator for approval

Please select a rating.

Related Products

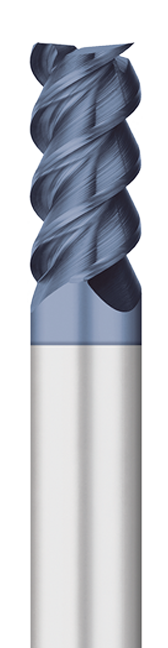

Carbide-3 Flute-Square-60° Helix

Featuring a 60° helix, and "high shear" geoemtry for slotting and profiling, this Titan USA product offering is proven to per. . .

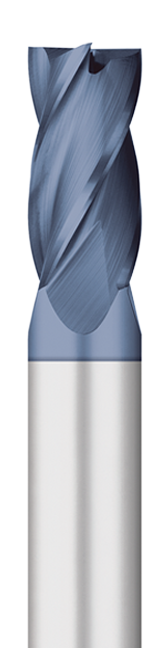

Carbide-4 Flute-Square-30° Helix

This Titan USA offering is available in stub, regular, long, and extra long length styles, and is fully stocked in AlTiN coat. . .

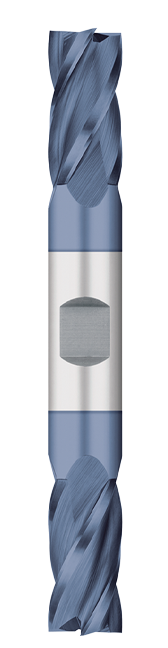

Carbide-4 Flute-Square-30° Helix-Double-Ended

Offered in stub or regular length styles, this double-ended offering of solid carbide General Purpose End Mills features 4 fl. . .

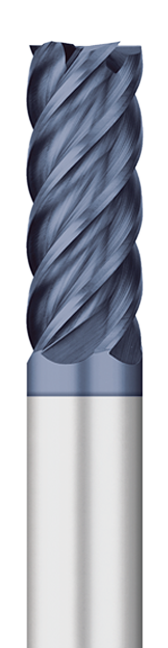

Carbide-5 Flute-Square-45° Helix

With excellent performance in profiling and finishing applications, this fully stocked offering of Titan USA General Purpose . . .

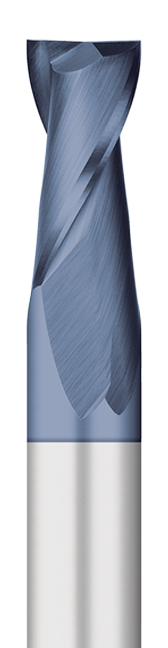

Carbide-2 Flute-Square-30° Helix
