Carbide - 2 Flute - Square - 30° Helix

General Purpose End Mills

Milling | Carbide

This general purpose, fully stocked Titan USA End Mill offering is available in AlTiN coating for increased wear and heat resistance, or with TiCN coating for enhanced performance when AlTiN cannot be used.

Offered in stub, regular, long, and extra long length styles
2 flutes

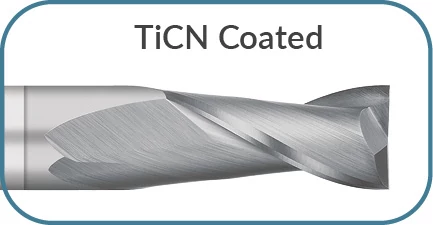

TiCN coating adds enhanced performance when AlTiN cannot be used
AlTiN coating offers increased wear and heat resistance
Solid carbide
Precision Manufactured in the USA

PRODUCT TABLE

Reviews

Advanced Search

Cutter
Diameter

Shank
Diameter

Length
of Cut

Overall
Length

TOOL #

PRICE

Show entries

Search:

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.001")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.001")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart
1/64	1/8	.023	1-1/2	TC10201	$16.20	TC91271	$19.75	TC11201	$20.60
1/64	1/8	1/32	1-1/2	TC10001	$17.10	TC90001	$20.65	TC10101	$21.50
1/64	1/8	.045	1-1/2	TC10033	$18.00			TC10133	$22.40
1/32	1/8	1/16	1-1/2	TC10202	$9.95	TC91272	$13.50	TC11202	$13.51
1/32	1/8	1/8	1-1/2	TC10002	$11.40	TC90002	$14.95	TC10102	$15.80
1/32	1/8	3/16	1-1/2	TC10034	$12.20			TC10134	$16.60
3/64	1/8	3/32	1-1/2	TC10203	$9.95	TC91273	$13.50	TC11203	$13.21
3/64	1/8	1/8	1-1/2	TC10003	$9.75	TC90003	$13.30	TC10103	$13.71
1/16	1/8	1/8	1-1/2	TC10204	$7.55	TC91274	$11.10	TC11204	$10.11
1/16	1/8	1/4	1-1/2	TC10004	$9.80	TC90004	$11.61	TC10104	$11.61
1/16	1/8	3/8	1-1/2	TC10211	$10.90			TC11209	$15.30
5/64	1/8	1/8	1-1/2	TC10205	$12.70	TC91275	$16.25	TC11205	$16.41
5/64	1/8	1/4	1-1/2	TC10005	$10.10	TC90005	$13.65	TC10105	$14.11
3/32	1/8	3/16	1-1/2	TC10206	$7.55	TC91276	$11.10	TC11206	$10.11
3/32	1/8	3/8	1-1/2	TC10006	$8.95	TC90006	$11.61	TC10106	$11.61
3/32	1/8	9/16	1-1/2	TC10035	$9.85			TC10135	$14.25
3/32	1/8	3/4	1-1/2	TC10037	$10.75			TC10137	$15.15
7/64	1/8	3/8	1-1/2	TC10007	$9.30	TC90007	$12.85	TC10107	$12.91

Showing 1 to 2 of 18 entries

Previous1Next

Show entries

Search:

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.002")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.002")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart
1/8	1/8	1/4	1-1/2	TC10208	$7.25	TC91278	$9.71	TC11208	$9.71
1/8	1/8	3/8	1-1/2	TC10038	$7.85			TC10138	$12.25
1/8	1/8	1/2	1-1/2	TC10008	$8.45	TC90008	$10.81	TC10108	$10.81
1/8	1/8	5/8	2	TC10039	$12.10			TC10139	$16.50
1/8	1/8	3/4	2-1/4	TC15008	$13.75	TC95008	$17.50	TC15108	$18.45
1/8	1/8	1	3	TC17008	$15.40	TC97008	$19.15	TC17108	$20.10
9/64	3/16	9/16	2	TC10009	$12.35	TC90009	$16.30	TC10109	$17.30
5/32	3/16	5/16	2	TC10210	$11.85	TC91280	$15.80	TC11210	$15.21
5/32	3/16	9/16	2	TC10010	$12.60	TC90010	$15.01	TC10110	$15.01
11/64	3/16	5/8	2	TC10011	$11.95	TC90011	$15.90	TC10111	$16.71
3/16	3/16	3/8	2	TC10212	$11.15	TC91282	$14.41	TC11212	$14.11
3/16	3/16	5/8	2	TC10012	$11.65	TC90012	$15.01	TC10112	$15.11
3/16	3/16	3/4	2-1/2	TC15012	$17.30	TC95012	$21.55	TC15112	$21.51
3/16	3/16	1-1/8	3	TC17012	$16.75	TC97012	$21.00	TC17112	$22.05
13/64	1/4	5/8	2-1/2	TC10013	$16.95	TC90013	$22.00	TC10113	$23.01
7/32	1/4	7/16	2	TC10214	$15.00	TC91284	$19.75	TC11214	$18.61
7/32	1/4	5/8	2-1/2	TC10014	$17.25	TC90014	$20.91	TC10114	$20.91
15/64	1/4	3/4	2-1/2	TC10015	$19.55	TC90015	$24.60	TC10115	$25.90

Showing 1 to 2 of 57 entries

Previous1 2 3 4Next

Show entries

Search:

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.003")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart

Cutter Diameter	Shank Diameter	Length of Cut	Overall Length	Uncoated		TiCN Coated		AlTiN Coated		Add to Cart
D1 (+.000" / -.003")	D2 (h6)	L2	L1	Tool #	Price	Tool #	Price	Tool #	Price	Add to Cart
9/16	9/16	1-1/4	3-1/2	TC10036	$72.55	TC90036	$67.07	TC10136	$87.80
5/8	5/8	3/4	3	TC10240	$72.15	TC91296	$83.55	TC11240	$86.45
5/8	5/8	1-1/4	3-1/2	TC10040	$73.80	TC90040	$71.17	TC10140	$89.05
5/8	5/8	2-1/4	5	TC15040	$113.25	TC95040	$126.40	TC15140	$129.70
5/8	5/8	3	6	TC17040	$122.20	TC97040	$108.17	TC17140	$139.95
3/4	3/4	1	3	TC10248	$100.60	TC91298	$114.15	TC11248	$117.60
3/4	3/4	1-1/2	4	TC10048	$103.10	TC90048	$117.65	TC10148	$121.30
3/4	3/4	2-1/4	5	TC15048	$156.40	TC95048	$153.37	TC15148	$175.95
3/4	3/4	3	6	TC17048	$182.45	TC97048	$169.57	TC17148	$203.60
7/8	7/8	1-1/2	4	TC10056	$189.55	TC90056	$207.10	TC10156	$211.50
7/8	7/8	2-1/4	5	TC15056	$236.47	TC95056	$250.67	TC15156	$254.27
7/8	7/8	3	6	TC17056	$259.17	TC97056	$274.57	TC17156	$278.37
1	1	1-1/4	3-1/2	TC10264	$166.45	TC91299	$187.50	TC11264	$192.75
1	1	1-1/2	4	TC10064	$173.60	TC90064	$168.87	TC10164	$199.90
1	1	2-1/4	5	TC15064	$214.20	TC95064	$187.87	TC15164	$242.55
1	1	3	6	TC17064	$308.30	TC97064	$264.37	TC17164	$268.97

Showing 1 to 2 of 16 entries

Previous1Next
