Tool # TC88062

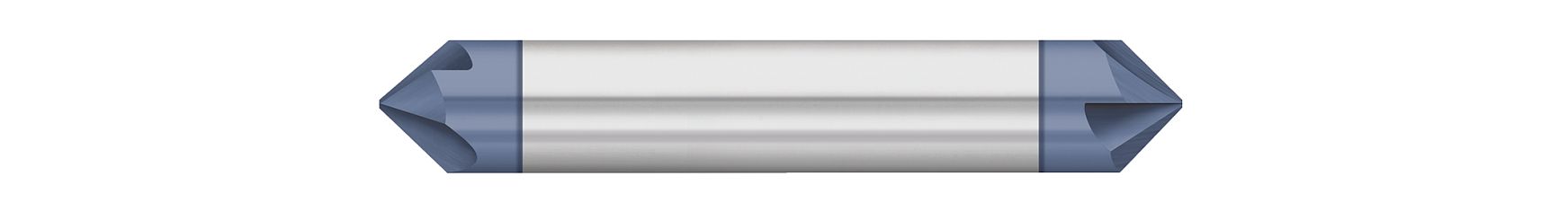

Chamfer Mills - 4 Flute - Flat Tip - Double Ended, Milling
- Included Angle: 90
- Cutter Diameter: 0.2500" (1/4)
- Length of Cut: 0.1030"
- Tip Diameter: 0.0440"
- Theoretical Tip Length: 0.0220"
- Tool #: TC88062
- Quantity Available: 1163
- Price: $44.60
-
Customer Rating:
Resources
Running Parameters
OPTIMIZED FOR
Operations
Countersinking
Profiling
Chamfering
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

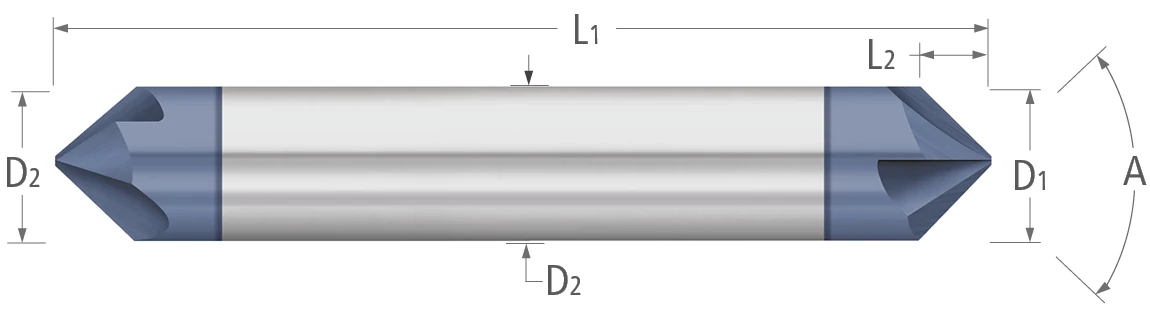

TOOL DIMENSIONS
- Included Angle 90
- Cutter Diameter 0.2500" (1/4)
- Length of Cut 0.1030"
- Tip Diameter 0.0440"
- Theoretical Tip Length 0.0220"
- Shank Diameter 0.2500" (1/4)
- Overall Length 2.5000" (2-1/2)
- Flutes 4
- Profile Flat
- Coating UNCOATED
- Catalog Page 156
